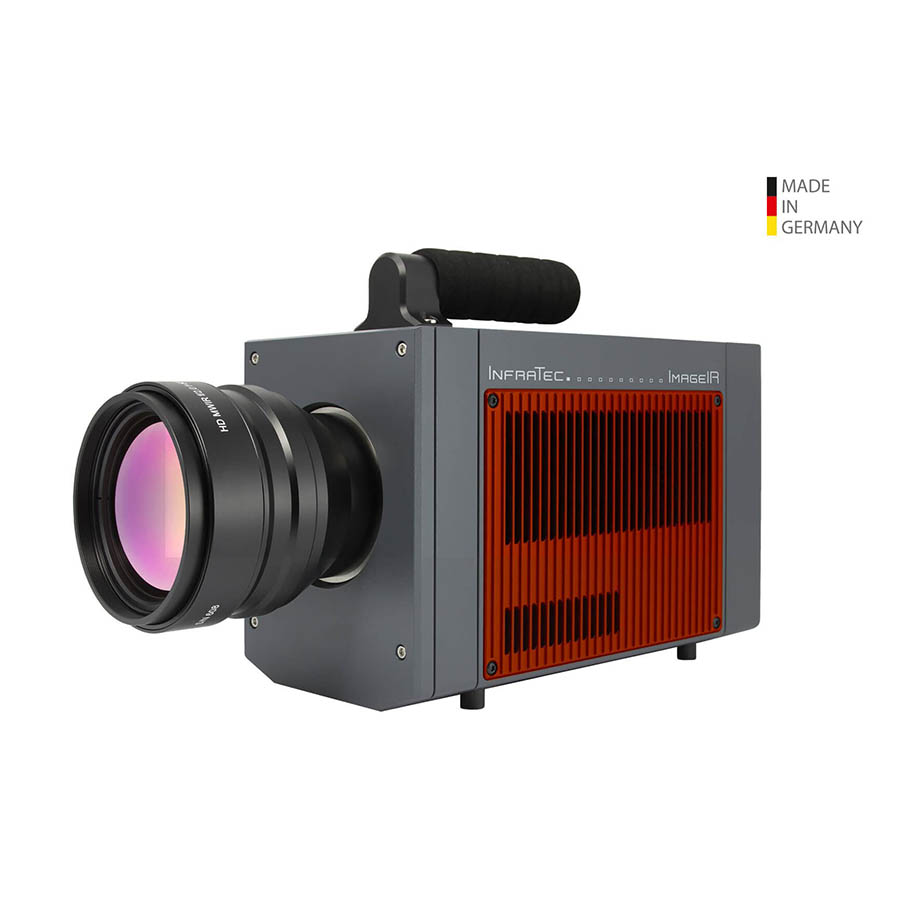

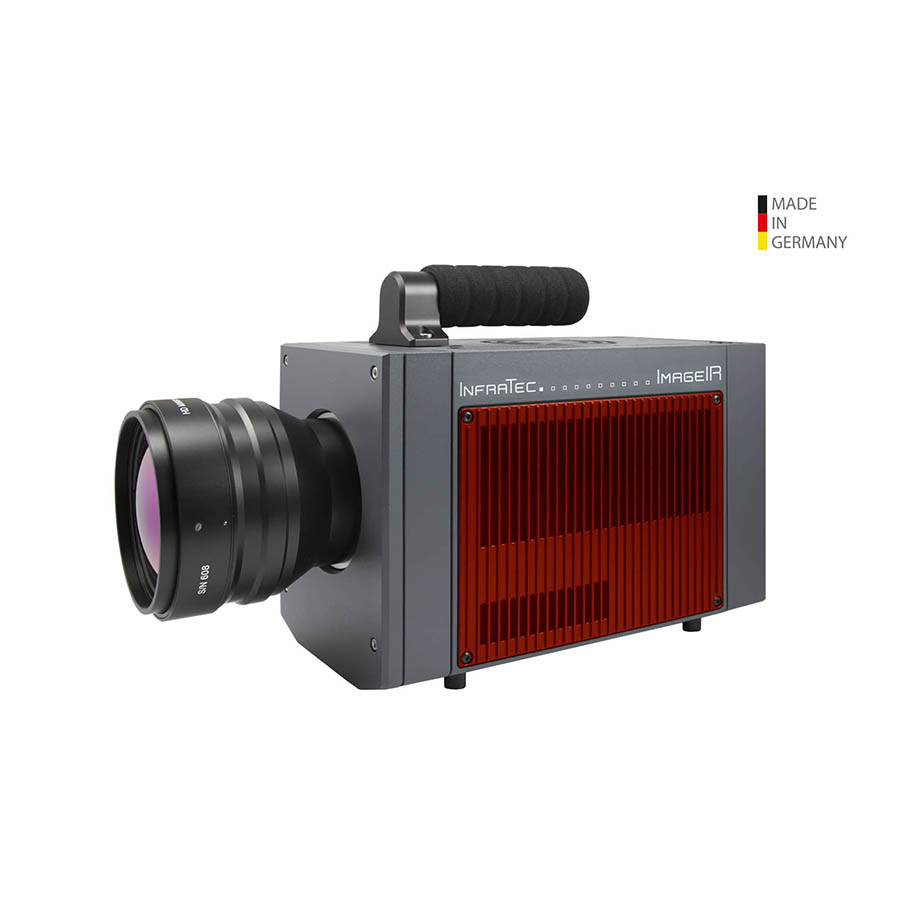

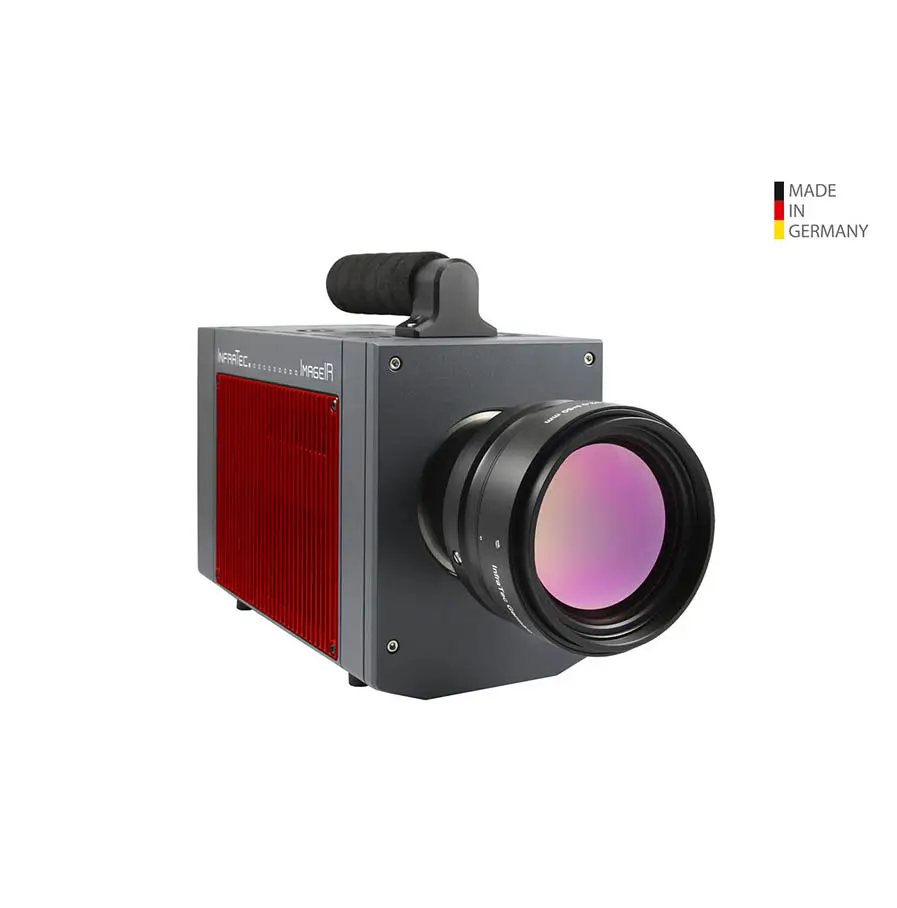

ImageIR 10300

Aperture

F/2.0

FPA

InSb

FPS

Up to 113/216/396/1915 Hz – High-speed mode: up to 400/692/1088/2493 Hz

Manufacturer

InfraTec

Cooling

Stirling

Measurement Accuracy

± 1 ℃ or ± 1 %

Temperature Resolution

0.022 K in high-speed mode, 0.035 K

Temperature Measuring Range

-40 … 1200 ℃ (up to 3000 ℃*)

Readout Mode

ITR, IWR

Focus

Automatic, Manual, Motorised

Wavelength Range

3.6 … 4.9 μm

Pixel Size

10 µm

Bit Depth

14-bits

Resolution

1920×1536
